StraPack SQ-800
Ram Bundler Automatic Strapping Machine
The StraPack SQ-800 is an ultra-fast machine that offers an efficient way to compresses and strap packages. Particularly useful for the corrugated industry, this machine is an excellent way to increase output whilst ensuring your package remains pressed into a suitable shape.
All of the industry-leading features of a StraPack SQ-800, with additional ram bundling capabilities and two-handed press operation.
High Speed - up to 55 straps per minute (even with tension applied)
Robust, portable design with locking castors
Foot bar and Adjustable Height as standard
Easy strap loading (no need to remove from conveyor line)
Automatic Re-feed
Easy maintenance
Ready to operate in under 25 secs
Tension capability up to 80kgf (150mm stroke)
Compatible with Strap sizes 5, 6, 9, 12, 15.5 mm
Width: 1254 mm
Depth: 609 mm
Height: 1403-1508 mm
Weight: 146 kg

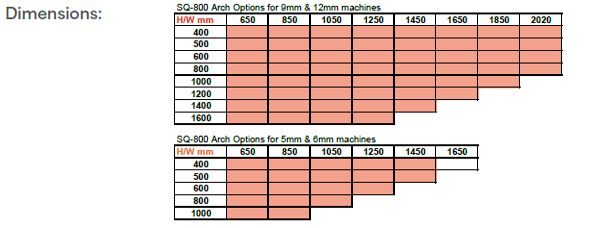

Arch Size: W 620 mm x H 480 mm
Conveyor Height: 798 mm
Joint/Strap/Coil: Heat seal/ Polypropylene
Strap Width: 5, 6, 9, 12, 15.5 mm
Power Supply: 100 - 240V
single phase 50/60Hz 0.9KVA
On-site maintenance support available on all Machines
Our nationwide team of skilled mobile engineers carry most spare parts in their vehicles to quickly provide the necessary repair service directly on site. We also hold a comprehensive stock of standard parts at our head office, many of which can be available overnight.
