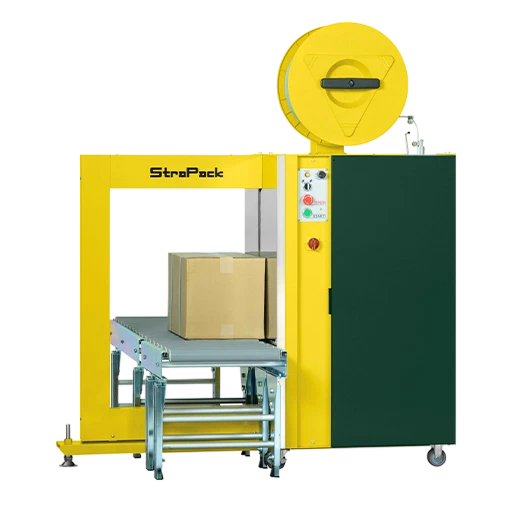

StraPack SQ-800Y
Automatic Strapping Machine

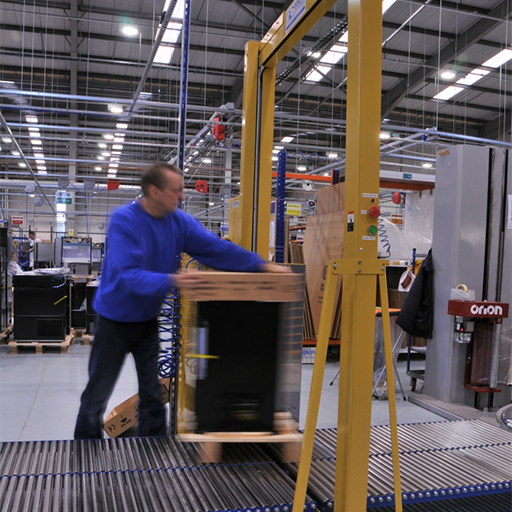

The StraPack SQ-800Y automatic strapping machine is ideal for heavy products; the weight of the product is on the conveyor, not on the strapping machine.
The side-mounted head makes it ideal for applications where dirt and dust can be a problem. The StraPack SQ-800Y machine is easily removed from the conveyor system for servicing.
Our sales and in‑house engineering team can work with you to adapt and refine machinery to suit your operation, ensuring the right strapping solution for your products and processes. To discuss your operation and how we can support you, please contact us.
High speed - up to 54 straps per minute (even with tension applied)
Ready to operate in less than 25 seconds
Torque mode (for stronger tension) and stroke tension (for delicate packs)
Energy efficient - Brushless DC motors
Easy maintenance
Robust construction
Compatible with Strap sizes 5, 6, 9, 12, 15.5 mm
Width: 1500 mm
Depth: 610 mm
Height: 1722 mm
Weight: 200 kg
Table Height: 794, 809, 824, 839, 854, 869, 884, 899 mm
Minimum Package Size: Wood: W 40mm x H 30mm.
Ø Pipe: 30mm x2
Max Package Size: W 620 x H 380mm
Joint/Strap/Coil: Heat seal/ Polypropylene/ ID 200 x OD 450
x W 200 mm
Strap Width: 5, 6, 9, 12 mm
Strap Tension:Up to 450N (46kgf), 150mm stroke
Power Supply: 100 - 240V
Single phase 50/60Hz 0.74kVA
On-site maintenance support available on all Machines
Our nationwide team of skilled mobile engineers carry most spare parts in their vehicles to quickly provide the necessary repair service directly on site. We also hold a comprehensive stock of standard parts at our head office, many of which can be available overnight.
