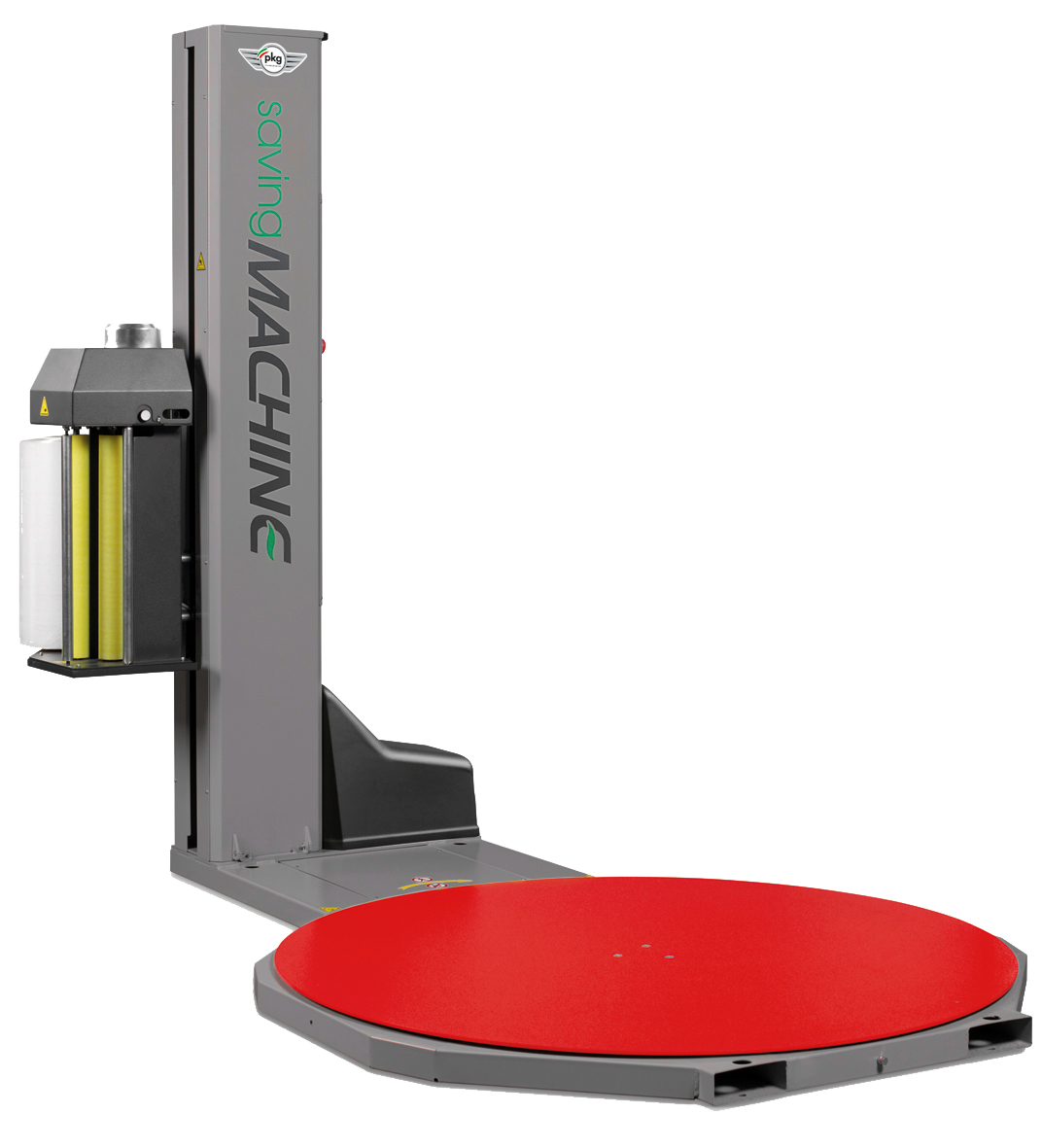

PKG Saving MPS
Semi-Automatic Stretch Wrapping Machine
The Saving MPS is a semi-automatic turntable power stretch wrapping machine for general industrial applications. The power pre stretch film carriage enables film to be applied at a constant and easily adjustable tension.
The standard film carriage is 200% stretch, but interchangeable gears are available (150% and 250% stretch). The film carriage is designed to use power stretch film.
Power pre-stretch film carriage
Turntable Ø 1650mm for pallets up to 1200x1000mm
Capacity: up to 20 pallets/hour depending on load size
Wrapping height (incl. pallet): up to 2150mm
Max. load weight: 2000kg
Speed: up to 12 rotations/min
Photocell for automatic height detection
Microprocessor controlled, with intuitive control panel
Emergency stop/ Reset button following CE norms
Film: Stretch Polyethylene
Film Thickness: 17-35 micron
Film Width: 500 mm
Rotary Table Height: 1650 mm
Production Speed: Up to 20 pallets/hr (5.8rpm)
Pallet Dimensions: Up to 1200 x 1000 mm
Pallet Height: Up to 2200 mm
Max Pallet Weight: 2000 kg
Power Supply: 240V, Single Phase, 50Hz
Power Consumption: 1.2kw
On-site maintenance support available on all Machines
Our nationwide team of skilled mobile engineers carry most spare parts in their vehicles to quickly provide the necessary repair service directly on site. We also hold a comprehensive stock of standard parts at our head office, many of which can be available overnight.
