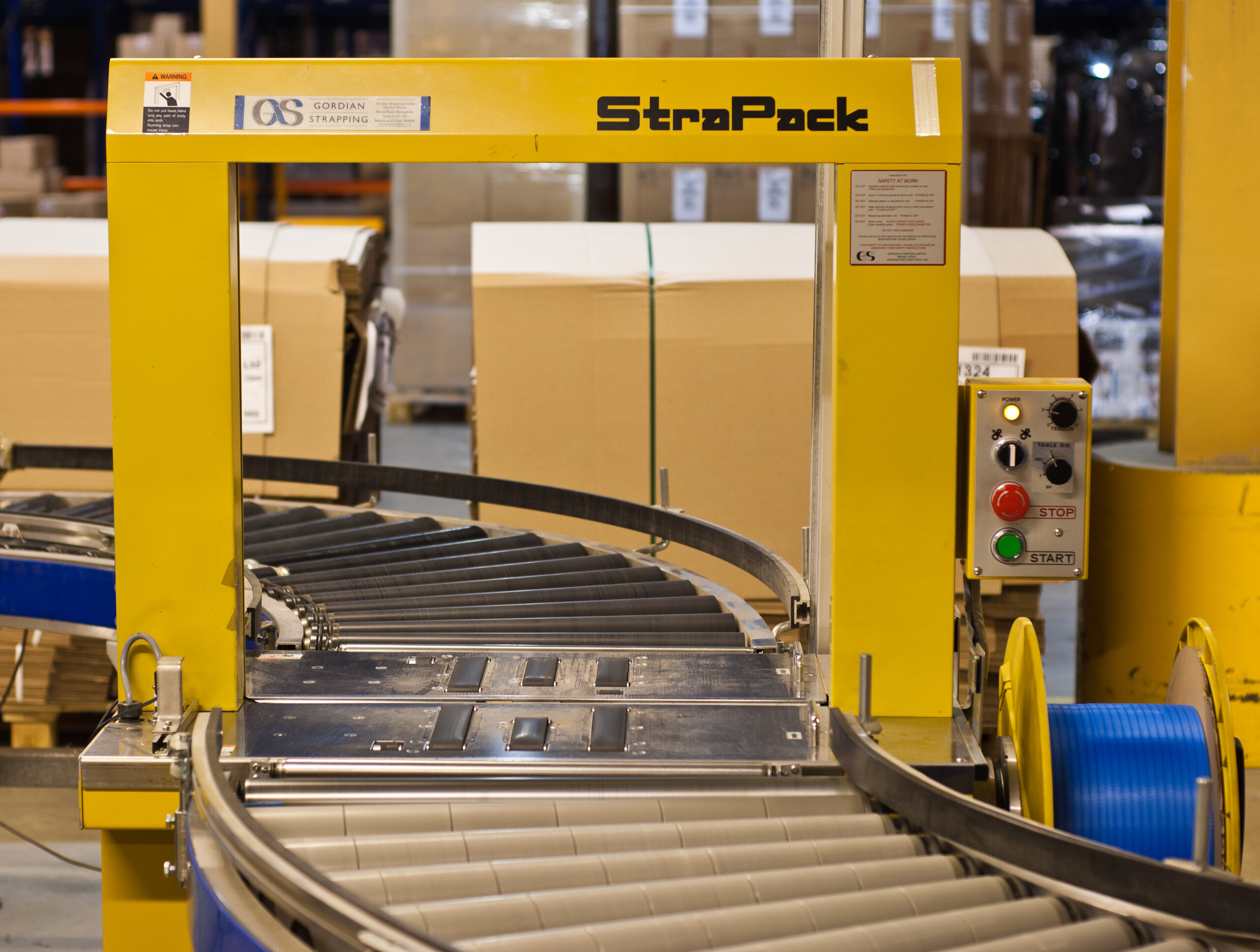

StraPack SQ-800A Fully Automated Strapping Machine
The StraPack SQ-800A is a fully automatic strapping machine with improved speed and quieter operation. This machine is ready to operate in less than 25 seconds, contributing to increased packaging line efficiencies.
There are many functionalities and benefits to the SQ-800A. The anti-jam function is operated with a package on the table, where the strap forms a small loop and is then ejected. The height can be adjusted to 8 positions from floor level. This machine has an automatic energy saving mode, where the machine enters standby mode after 3 minutes.
The tension capability is up to 80kgf (equivalent of 150mm stroke). Unlike many other machines in the market, tension does not compromise the cycle speed. The machine is easy to maintain and self-lubricates, reducing wear and tear whilst increasing operational life.
- Compatible with conveyor speeds of up to 30m per minute
- Ideal for high-volume, automated production lines
- Self-correcting technology in the unlikely event of a short feed
- Easy strap loading (no need to remove from conveyor line)
- Automatic Re-feed
- Easy maintenance
- Ready to operate in under 25 secs
- Tension capability up to 80kgf (150mm stroke)
- Available in 2 arch widths: W650mm (3 belts) or W850mm (6 belts)
- Compatible with Strap sizes 5, 6, 9, 12, 15.5 mm
Width: 1252 mm
Depth: 611 mm
Height: 1403 mm
Weight: 230 kg
Arch Size: W 650 mm x H 500 mm
Conveyor Height: 798 mm
Joint/Strap/Coil: Heat seal/ Polypropylene/ ID 200 x OD 450 x W 200 mm
Strap Width:Â 5, 6, 9, 12, 15.5 mm
Strap Tension: up to 784N (80kgf), 150mm stroke
Power Supply: 200, 220, 240, 380, 400, 415V 3
phase 50/60Hz 0.83KVA
Inverter Cycle (Hz) X Conveyor Speed (per min)
20 Hz | 9.8 m per min
30 Hz | 14.7 m per min
40 Hz | 19.6 m per min
50 Hz | 24.5 m per min
60 Hz (Max) | 29.4 m per min
Â
Max Package Weight (kg) X Max Conveyor Speed (per min)
20 kg | 30 m per min
25 kg | 24 m per min
30 kg | 20 m per min
35 kg | 17 m per min
40 kg | 15 m per min
